Laser Systems — Industrial
Horizon Laser
Laser welding, cleaning, marking, and cladding systems — ISO 9001, CE, RoHS, and FDA certified. Available in India through Meekee with local installation, warranty, and spare parts.
Full Horizon Laser Product Range
Portable handheld units through high-power industrial systems. Click a category to expand. OEM and custom configurations available for all product lines.
Laser Welding Machines
4 modelsHigh-speed, high-strength welds on stainless steel, carbon steel, aluminium, copper, and dissimilar metals. Up to 4× faster than TIG with smooth, grind-free beads. Operator proficiency achievable in one day.

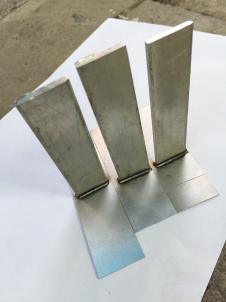

Handheld Laser Welder
Fiber laser welder with integrated chiller and wire feeder. Continuous and spot modes. ~10 m torch cable, <1.2 kg torch weight.
| Power | 1000W / 1500W / 2000W |
|---|---|
| Max SS Depth | 3 / 4 / 6 mm |
| Weld Width | 0.2–5 mm |
| Wavelength | 1080 ±3 nm CW fibre |
| Cooling | Water cooled |
| Voltage | 220V AC / 380V AC |
4-in-1 Handheld
Weld + clean + cut + seam-clean in one unit. Wheeled cabinet for easy shop floor repositioning. Single machine replaces multiple tools.
| Power | 1000W / 1500W / 2000W |
|---|---|
| Modes | Weld, Clean, Cut, Seam-clean |
| Max SS Depth | Up to 5 mm at 2000W |
| Cooling | Water cooled |
| Voltage | 220V AC / 380V AC |
6000W High-Power Welder
New generation high-power handheld welder for thick-section steel. Structural fabrication, pressure vessels, and heavy manufacturing.
| Power | 6000W |
|---|---|
| Max Weld Depth | Up to 12 mm |
| Wavelength | 1080 ±3 nm CW fibre |
| Cooling | Water cooled |
| Voltage | Three-phase 380V AC |
Multi-Axis / Robot Welder
Gantry or 6-axis robot laser welding cell. Programmable seam paths for high-volume, repeatable production — automotive, EV battery, enclosures.
| Configuration | CNC gantry or 6-axis robot |
|---|---|
| Power | Custom (1–6 kW) |
| Positioning | Servo-driven, programmable path |
| Integration | Robot arm + laser + wire feeder |
Laser Cleaning Machines
4 modelsNon-contact surface cleaning — rust, paint, oil, oxide, coatings — without abrasion or chemical consumables. Precise depth control leaves base material undamaged. Suitable from delicate molds to heavy industrial pipelines.
100–300W Pulse Handheld
Portable pulsed fiber cleaner with dual oscillating mirror design. Air-cooled, lightweight. Ideal for on-site maintenance and precision cleaning of delicate surfaces.
| Power | 100W / 200W / 300W |
|---|---|
| Laser Type | Pulsed fiber laser |
| Cooling | Air cooled |
| Use Case | Molds, precision parts, on-site |
| Certifications | CE & RoHS |
500W MOPA Pulse Cleaner
High-efficiency MOPA source for paint stripping and heavy oxide removal. Adjustable pulse width and frequency for material-specific cleaning profiles.
| Power | 500W |
|---|---|
| Laser Type | MOPA pulsed fiber |
| Pulse Width | Adjustable (material-specific) |
| Use Case | Paint stripping, heavy oxide |
| Certifications | CE & RoHS |
1500–3000W CW Handheld
Continuous wave high-power cleaner for large-area industrial applications. Rail transit, shipbuilding, and petrochemical pipeline maintenance.
| Power | 1500W / 2000W / 3000W |
|---|---|
| Laser Type | Continuous wave fiber |
| Cooling | Water cooled |
| Use Case | Shipbuilding, pipeline, rail |
| Certifications | CE & RoHS |
6000W CW / Robot Workstation
High-power CW cleaner and robotic workstation with 3D vision positioning for automated production line cleaning — tire molds, stamping tools.
| Power | 6000W |
|---|---|
| Laser Type | CW / robotic integration |
| Positioning | 3D vision auto-positioning |
| Cooling | Water cooled |
| Use Case | Tire molds, auto stampings |
Laser Marking Machines
4 modelsPermanent, high-resolution marking of characters, serial numbers, QR codes, barcodes, and logos on metals and non-metals — no consumables. Software supports PLT, DXF, AI, BMP, and JPG with auto serial number and date generation.
Fiber Laser Marker
1064 nm fiber laser for metals, plastics, and composite materials. Portable desktop or production-line configuration. 100,000 h source lifespan.
| Power | 20W / 30W / 50W / 100W / 200W |
|---|---|
| Wavelength | 1064 nm |
| Marking Speed | <7000 mm/s |
| Min. Char Size | 0.2 mm |
| Min. Line Width | 0.03 mm |
| Cooling | Air cooled |
UV Laser Marker
Cold-light UV processing — no thermal stress or melting. Ideal for PCBs, glass, ceramics, and pharmaceutical packaging where heat-affected marking is unacceptable.
| Power | 3W / 5W / 10W |
|---|---|
| Wavelength | 355 nm (UV) |
| Process | Cold light — no HAZ |
| Materials | PCB, glass, ceramics, plastics |
| Cooling | Air cooled |
Handheld Laser Marker
Portable battery-powered marker with integrated air-cooled laser and lithium battery. Mark large or fixed parts on-site without moving them to a workstation.
| Power | 20W / 30W / 50W |
|---|---|
| Power Source | Lithium battery (portable) |
| Cooling | Air cooled (integrated) |
| Use Case | On-site marking of fixed parts |
CCD Visual Auto-Marker
CCD camera auto-positioning for production line integration. Marks irregularly placed parts without manual fixture alignment. High-precision repeat accuracy.
| Power | 20W / 30W / 50W |
|---|---|
| Positioning | CCD camera auto-detection |
| Use Case | Automated production lines |
| Cooling | Air cooled |
Laser Cladding Equipment
2 modelsHigh-energy laser + alloy powder deposition creates a metallurgical bonding layer that improves wear, corrosion, high-temperature, and oxidation resistance. Used to strengthen new parts or repair locally damaged surfaces — extending service life significantly.
Laser Cladding Workstation CL6000
Flat-top beam fiber laser with 6-axis robot arm (1.8 m reach). 4-channel coaxial annular powder feeder with adjustable cladding width 2–6 mm per pass.
| Laser Power | 6000W |
|---|---|
| Wavelength | 1080 ±3 nm fiber |
| Power Range | 10–100% |
| Cladding Width | 2–6 mm (adjustable) |
| Powder Feeding | 4-channel coaxial annular ring |
| Robot Arm | 6-axis, 1.8 m reach (optional) |
| Dimensions | 3000 × 3000 × 2500 mm |
| Power Supply | Three-phase 380V AC |
| Cooling | Water cooled |
Laser Cladding Workstation CL12000
High-power system for large-area cladding on rollers, shafts, and turbine blades. Dual-barrel powder feeder for uninterrupted long production cycles.
| Laser Power | 12000W |
|---|---|
| Wavelength | 1080 ±3 nm fiber |
| Power Range | 10–100% |
| Cladding Width | 2–6 mm (adjustable) |
| Powder Feeding | Dual-barrel 4-channel coaxial |
| Robot Arm | 6-axis, 1.8 m reach (optional) |
| Dimensions | 3000 × 3000 × 2500 mm |
| Power Supply | Three-phase 380V AC |
| Cooling | Water cooled |
4-in-1 Handheld Welder
2000W flagship model — welding, cleaning, cutting, and seam-cleaning in one unit
| Laser Source | CW fiber laser — 1080 ±3 nm |
|---|---|
| Output Power | 1000W / 1500W / 2000W (selectable) |
| Power Adjustment | 10–100% |
| Modes | Weld, Clean, Cut, Seam-clean |
| Max Weld Depth (SS) | 3 mm (1kW) / 4 mm (1.5kW) / 6 mm (2kW) |
| Max Weld Depth (Al) | 2 mm (1kW) / 3 mm (1.5kW) / 4 mm (2kW) |
| Torch Cable | ~10 m |
| Torch Weight | <1.2 kg |
| Welding Speed | 4× faster than TIG/argon arc |
| Cooling | Water cooled (integrated chiller) |
| Voltage | 220V AC (single) / 380V AC (three-phase) |
| Operating Temp | 0–40°C | <70% RH |
| Certifications | CE, RoHS, ISO 9001 |
Why Horizon Laser
4× Faster Welding
Laser welding runs 4× faster than argon arc or TIG. Smooth, grind-free beads — single-pass formation with no post-weld finishing required.
Zero Consumables (Cleaning)
Laser cleaning uses no abrasive media, no chemicals, and no solvents. Operating cost is electricity only after capital investment — ROI within 12–18 months for most applications.
Permanent Part Traceability
Laser marking creates permanent, unalterable codes — QR codes, serial numbers, data matrix. No ink, no labels, no wear. Essential for automotive, medical, and pharma compliance.
Cladding Extends Part Life
Laser cladding creates a metallurgical bond (not a coating) that significantly extends wear and corrosion life. Repair damaged hydraulic rods, turbine blades, and rolling mill rollers instead of replacing them.
ISO 9001, CE & FDA Certified
All Horizon Laser systems meet international quality and safety standards. CE and RoHS for European compliance. FDA registration supports pharma and medical device applications.
India Support via Meekee
Meekee provides on-site commissioning, 1-year warranty, local spare parts in Chennai, operator training, and remote technical support — no overseas support delays.
Laser Cleaning vs Traditional Surface Treatment
Engineers switching from sandblasting, chemical stripping, and abrasive cleaning find laser cleaning covers 90% of use cases at a lower long-run cost.
Sand Blasting / Chemical Stripping
- Abrasive media cost and hazardous disposal
- Surface erosion risk — difficult to control depth
- Chemical handling, ventilation, and PPE requirements
- Manual and inconsistent results
- Not suitable for precision or delicate parts
- Ongoing consumable cost month after month
Laser Cleaning via Meekee
- No consumables — zero chemical waste
- Base material undamaged — precise depth control
- Dry process — no media blasting mess or PPE
- Automated and robotic integration ready
- Suitable for delicate surfaces and fine features
- Low operating cost after capital investment
Request a Demo or Site Visit
See the machines work on your actual material. We can arrange a live demo at our Chennai facility or a site visit to your plant. Fill in the details below and we will get back within 1 business day.
